Next generation digital power protection monitoring system for highly reliable plant facilities.
Protection Function

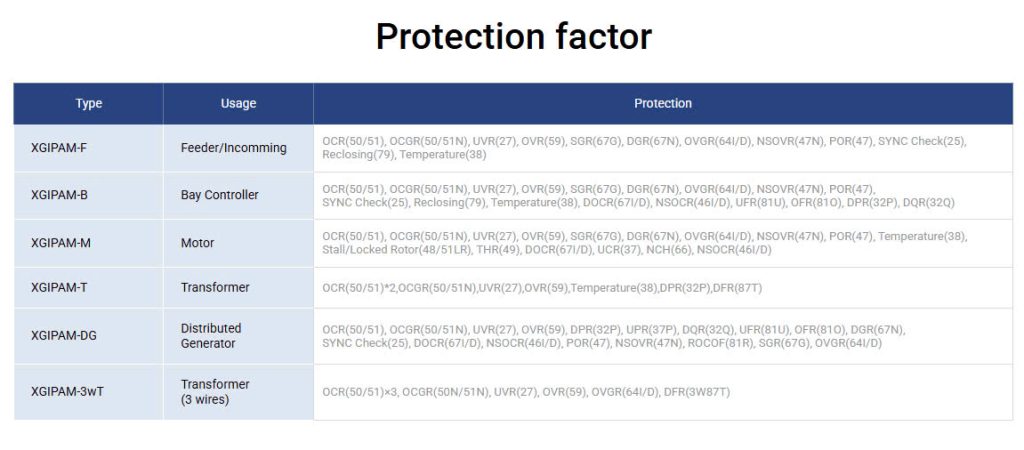

- Various protection factors (29 protection factors)
- Event and fault recording (max 1,000 recording)
- Various measurements and monitoring functions (25 measurements)
- Trip logic and PLC function
- Mimic diagram function
- Advanced power quality measurements (2~63rd harmonic)
- Select & check before operating (CBO) functions
- Vector diagram
- Time characteristic curve
- Trip circuit supervision (TCS) & trip relay supervision (TRS)
- Sequence of events (SOE)
- Harmonic spectrum
- Analog input (optional)
- Input/output points monitoring and control function
- Supervision of CB capacity limit
- Bay controller function
- Arc protection module (optional)
Convenience Function
- Easy connecting to PC manager
- Easy setting group
- Flexible modular architecture hardware and software
- 8.4″ inches of large color touch screen
- Language selection and user selective menu (eng/kor)
Communication Function
- Various communication compatibilities
- Communication redundancy
- IEC61850 communication
